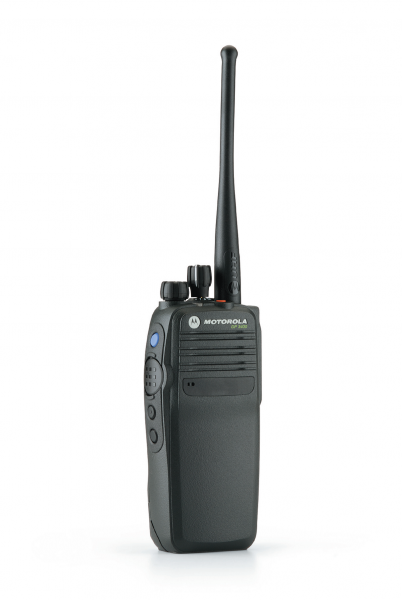

MOTOTRBO is a versatile digital system of portable and mobile radios, repeaters and accessories that delivers increased capacity and integrated voice and data communication. Now with the Capacity Plus single-site trunking solution, you can expand your communication capacity to enable up to 1200 radio users to share voice and data communication on the same system. In addition, the IP Site Connect solution gives you the ability to extend your communication reach further by connecting multiple locations, creating continuous wide area coverage or enhancing single site coverage.



Tri-colour LED indicator for clear, visible

feedback of calling, scanning and

monitoring.



Emergency button to alert supervisor

or dispatcher in an emergency situation.



New accessory connector meets

IP57 submersibility specifications and

incorporates RF, USB and enhanced

audio capability.



DP 3401 includes integrated GPS module.

Radio housing meets IP57 specifications;

submersible in 1 metre of water up to

30 minutes.



Powerful, front projecting speaker.



Three side programmable buttons for

easy access to favourite features. New

features such as one-touch calling and quick

text messaging are made even easier

through programmable button access.



Large, textured push-to-talk button. Provides

good tactile response and easy access, even

when wearing gloves.

DP3400/3401 RAPID CHARGER;   DP3400/3401 REMOTE SPEAKER MIC;   DP3400/3401 CHARGER

Features:

  • 32 channels
  • Global Positioning System (GPS) module built-in (DP3401 only)
  • Large, textured pust-to-talk button for ease of use
  • IP57 environmental sealing helps ensure continued operation in tough working conditions
  • 3 programmable buttons to improve ease-of-use and increase operator efficiency
  • Tri-colour LED for clear visual feedback on radio operating status
  • Emergency button to help ensure rapid response to critical incidents
  • Quick, easy-to-use Group, Individual and All-call capability
  • Sophisticated Emergency Calls help ensure employee safety
  • PTT ID helps improve communications efficiency and system discipline
  • Remote Monitor features help ensure employee safety and enable fast assessment of remote user status
  • Elegant channel scanning schemes help ensure calls are received first time every time
  • New accessory connector with RF port and USB interface for advanced connectivity

Standard Package Comprises:

  • Radio
  • NiMH 1300mAh battery
  • impresTM Single-Unit Charger
  • Whip antenna
  • 2.5" belt clip
  • Quick reference guide

Memory Channels: 32



SPECIFICATIONS
GENERAL SPECIFICATIONS       TRANSMITTER
Channel Capacity   32 Frequency 136-174 MHZ (VHF)
Frequency 136-174 MHZ (VHF) 403-470 MHz (UHF1)
  403-470 MHz (UHF1)   450-512 MHz (UHF2)
    450-512 MHz (UHF2) Channel Spacing 12.5 kHz/20 kHz¹/25 kHz
Dimensions (HxWxL) Frequency Stability +/- 1.5 ppm (DP 3400)
   with NiMH Battery 1300mAH 131.5 x 63.5 x 37.2 mm (-30 ºC, +60 ºC, +25 ºC) +/- 0.5 ppm (DP 3401)
   with Lilon Std Battery 1500 mAH 131.5 x 63.5 x 35.2 mm Power Output
   with Lilon HiCap Battery 2200 mAH 131.5 x 63.5 x 39.2 mm    UHF1 and UHF2 1W and 4W
   with Lilon FM Battery 1400 mAH 131.5 x 63.5 x 37.2 mm    VHF 1W and 5W
Weight Modulation Limiting +/- 2.5 kHz @ 12.5 kHz
   with NiMH Battery   400g +/- 4 kHz @ 20 kHz
   with Lilon FM Battery 340g   +/- 5.0 kHz @25 kHz
   with Lilon HiCap Battery   345g FM Hum and Noise -40dB @ 12.5 kHz
   with Lilon Std Battery   330g   -45dB @ 20/25 kHz
Power Supply   7.2 V nominal Conducted / Radiated Emission -36dBm < 1 GHz
Average battery life at 5/5/90 duty cycle with battery saver   30dBm > 1 GHz
enabled in carrier squelch and transmitter in high power Adjacent Channel Power -60dB @ 12.5 kHz
IMPRES Lilon Std Battery Analogue: 9 hrs / Digital: 13 hrs   -70 dB @20/25 kHz
IMPRES Lilon HiCap Battery Analogue: 13.5 hrs / Digital: 19 hrs Audio Response +1. -3 dB
IMPRES FM Lilon Battery Analogue: 8.5 hrs / Digital: 12 hrs Audio Distortion 3%
NiMH Battery Analogue: 8 hrs / Digital: 11 hrs Digital Vocoder Type AMBE +2
  Digital Protocol ETSI-TI 102 361-1, 2 & 3

RECEIVER     GPS
Frequency 136-174 MHZ (VHF) Accuracy specs are for long-term tracking (95th percentile
  403-470 MHz (UHF1) values > 5 satellites visible at a nominal -130 dBm signal
    450-512 MHz (UHF2) strength)
Channel Spacing   12.5 kHz/20 kHz¹/25 kHz TTFF (Time to first Fix) Cold start   <2 minutes
Frequency Stability   +/- 1.5 ppm (DP 3400) TTFF (Time to first Fix) Hot start   <10 seconds
(-30 ºC, +60 ºC, +25 ºC)   +/- 0.5 ppm (DP 3401) Horizontal Accuracy   <10 meters
Analogue Sensitivity   0.35 uV (12 dB SINAD)
  0.22 uV (typical) (12 dB SINAD) ENVIRONMENTAL SPECIFICATIONS
    0.4 uV (20 dB SINAD)
Digital Sensitivity   5% BER: 0.3uV Opperating Temperature* -30 ºC / +60 ºC
Intermodulation   65 dB Storage Temperature -40 ºC / +85 ºC
Adjacent Channel Selectivity -60dB @ 12.5 kHz Temperature Shock Per MIL -STD
    -70 dB @20/25 kHz Hunidity Per MIL -STD
Spurios Rejection   70dB Water Intrusion EN 60529 - IP57
Rated Audio   500mW Packaging Test MIL-STD 810D AND E
Audio Distortion @ Rated Audio 3% (typical) * With Lilon battery, opperating temperature specification is -10 ºC / +60 ºC.
FM Hum and Noise -40dB @ 12.5 kHz With NiMH battery, operation temperature specification is -20 ºC / +60 ºC
    -45dB @ 20/25 kHz
Audio Response   +1. -3 dB
Conducted Spurios Emission   -57 dBm

MILITARY STANDARDS
  810E 810F
Applicable MIL-STD Methods Procedures   Methods Procedures
Low Pressure 500.3 II   500.4 II
High Temperature 501.3 I/A, II/A1   501.4 I/HOT, II/HOT
Low Temperature 502.3 I/C3, II/C1   502.4 I/C3, II/C1
Temperature Shock 503.3 I/A, 1C3   503.4 I
Solar Radiotion 505.3 I   505.4 I
Rain 506.3 I, II   506.4 I, III
Humidity 507.3 II   507.4 -
Salt Fog 509.3 I   509.4 I
Dust 510.3 I   510.4 I
Vibration 514.4 I/10, II/3   514.5 I/24
Shock 516.4 I, IV   516.5 I, IV
